Windows Image Repair using dism /online /cleanup image /restorehealth (guide)

To repair a Windows image, open Command Prompt as administrator, run DISM.exe /Online /Cleanup-Image /RestoreHealth, wait for The restore operation completed successfully, then run sfc /scannow.

DISM rebuilds the component store that SFC copies good files from, which is why it runs first; the repair usually takes several minutes and needs an internet connection unless you point it at a Windows ISO.

This guide covers what the command repairs, the CheckHealth and ScanHealth checks, the PowerShell cmdlet, how long it takes, what to do when it looks stuck, repairing from a Windows ISO when Windows Update cannot help, reading the logs, the wider DISM cleanup commands, and what to do when the repair fails on Windows 11 and Windows 10.

DISM RestoreHealth command to repair a Windows image

This is Microsoft's own sequence for a PC that still starts. It needs an administrator account and, by default, an internet connection.

1. Type cmd in the taskbar search box.
2. Right-click Command Prompt and select Run as administrator, then select Yes at the prompt.
3. Type DISM.exe /Online /Cleanup-Image /RestoreHealth and press Enter.

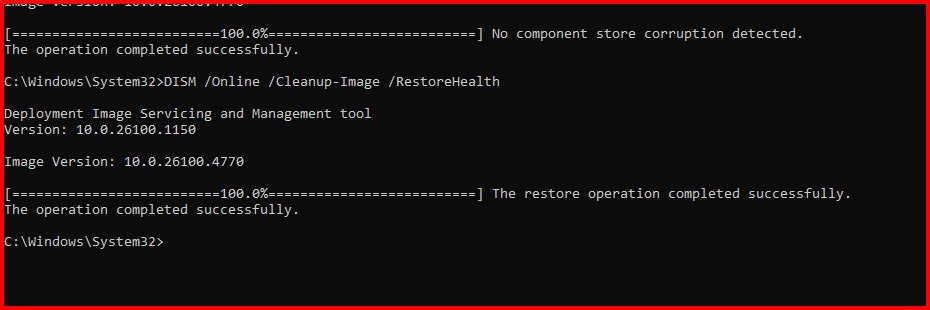

4. Wait for The restore operation completed successfully. The scan takes several minutes.
5. Type sfc /scannow and press Enter to repair the system files from the now-healthy image.
6. Restart the PC when SFC reaches 100%.

What does DISM /Online /Cleanup-Image /RestoreHealth do?

DISM (Deployment Image Servicing and Management) services Windows images. /Online points it at the running copy of Windows, and /Cleanup-Image selects its cleanup and recovery operations.

RestoreHealth repairs the component store, the store of known-good files that SFC copies from. That is why a broken store makes SFC fail and why DISM runs first.

Part of Windows	What DISM checks	Where it lives
Servicing packages	Package files and their metadata	%SYSTEMROOT%\Servicing\Packages
Component manifests	Manifests that describe every component	%SYSTEMROOT%\WinSxS\Manifests
Component registry data	Component and schema registration	HKEY_LOCAL_MACHINE\Components and HKEY_LOCAL_MACHINE\Schema
Servicing registry data	Component Based Servicing state	HKEY_LOCAL_MACHINE\Software\Microsoft\Windows\CurrentVersion\Component Based Servicing
Repair files	Downloads good copies of damaged files	Windows Update by default, or the folder or .wim file named in /Source

DISM.exe is built into every Windows 10 and Windows 11 installation in C:\Windows\System32, so you can run it from any folder in an elevated window; there is nothing to download.

When DISM finds an incorrect manifest, cabinet file or registry entry, it replaces it with a corrected version.

CheckHealth vs. ScanHealth vs. RestoreHealth

DISM has three health switches. They differ in speed and in whether they change anything, so match your situation to a row.

Your situation	Run this	Why
You want a quick yes/no before repairing	DISM /Online /Cleanup-Image /CheckHealth	Reports whether the image is already flagged as healthy, repairable or non-repairable. It changes nothing and finishes fast.
You suspect damage that nothing has flagged yet	DISM /Online /Cleanup-Image /ScanHealth	Scans the whole component store for corruption. It takes several minutes and repairs nothing.
SFC reports files it cannot fix	DISM /Online /Cleanup-Image /RestoreHealth	Rebuilds the store SFC repairs from, so a second SFC run can finish.
Windows Update fails with 0x80073712, 0x800f0831 or 0x800736CC	RestoreHealth, then Windows Update again	Microsoft lists these as component store corruption codes that DISM can fix.
Windows Update itself is broken or the PC is offline	RestoreHealth with /Source and /LimitAccess	Takes repair files from an ISO or another PC instead of Windows Update.
Windows will not start	RestoreHealth with /Image from the recovery environment	/Online only works on a running Windows installation.
CheckHealth reports the image is non-repairable	Reinstall Windows	Microsoft's guidance is to discard a non-repairable image rather than keep repairing it.

How to run DISM commands safely on Windows 10 and 11

Requirement	Detail
Administrator rights	DISM and SFC only run from an elevated Command Prompt, PowerShell or Terminal window.
A repair source	Windows Update by default. Without internet, a mounted image, a \sources\SxS folder or an install.wim file.
A matching source version	The source must be the same Windows version. If the PC is patched further than the source, the repair can fail.
Time	RestoreHealth and ScanHealth each take several minutes. Do not close the window mid-run.
Policy access on work PCs	Group Policy Specify settings for optional component installation and component repair can redirect or block the repair source.

How to run DISM /RestoreHealth in Windows 11 and 10

The command is identical in Command Prompt, PowerShell and Windows Terminal. DISM options are not case sensitive, so /restorehealth works as well as /RestoreHealth.

1. Type cmd or PowerShell in the taskbar search box.
2. Right-click the result, select Run as administrator and approve the prompt.
3. Optional: run DISM /Online /Cleanup-Image /CheckHealth for a quick verdict on the image.

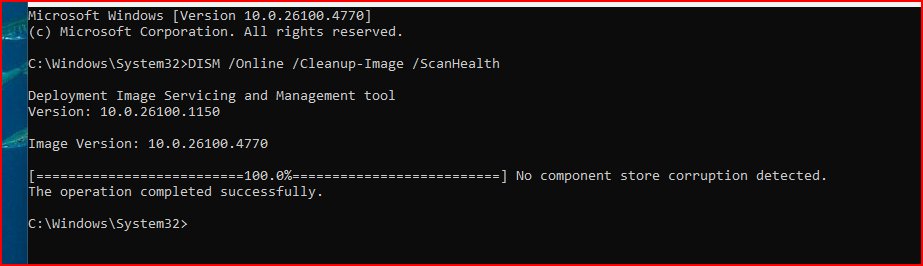

4. Optional: run DISM /Online /Cleanup-Image /ScanHealth for a full scan without repairs.

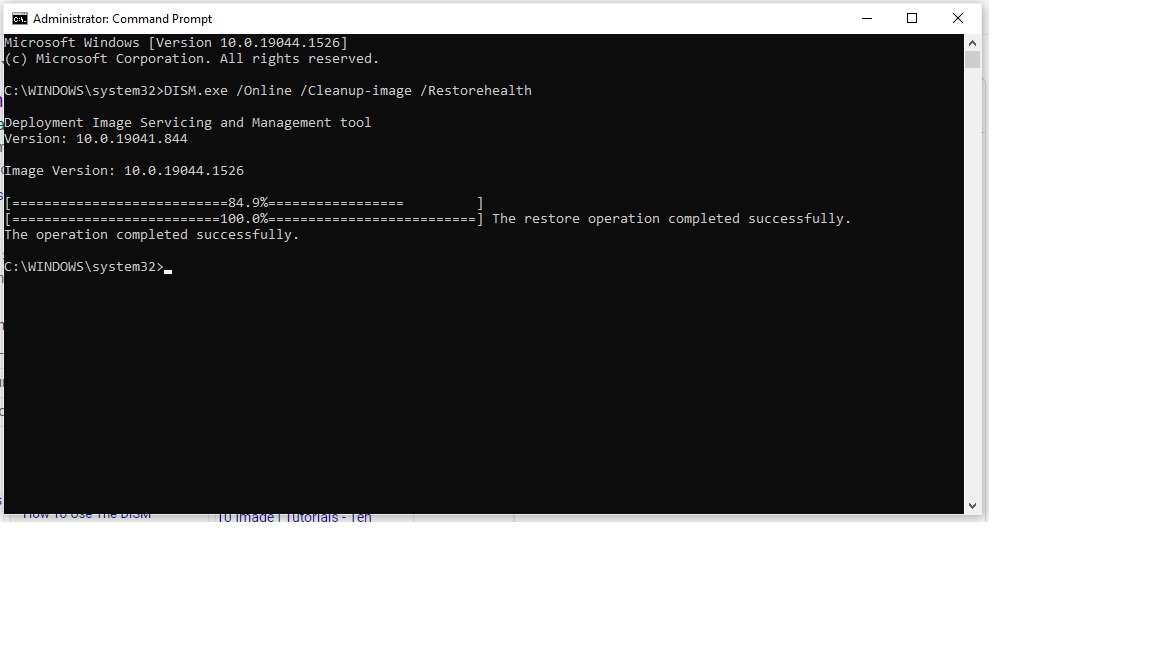

5. Run DISM /Online /Cleanup-Image /RestoreHealth to scan and repair in one pass.
6. Leave the window open until DISM prints its final result line.
7. Read the final line. The restore operation completed successfully means the store is repaired.

Type the switch as /Cleanup-Image with a hyphen, exactly as Microsoft's syntax shows it. The title of this guide writes it with a space only because that is how people search for it.

Repair Windows image and system files with PowerShell

PowerShell has its own cmdlet for the same three checks. Run it in an elevated PowerShell or Terminal window.

DISM command	PowerShell equivalent
DISM /Online /Cleanup-Image /CheckHealth	Repair-WindowsImage -Online -CheckHealth
DISM /Online /Cleanup-Image /ScanHealth	Repair-WindowsImage -Online -ScanHealth
DISM /Online /Cleanup-Image /RestoreHealth	Repair-WindowsImage -Online -RestoreHealth
RestoreHealth with a local source	Repair-WindowsImage -Online -RestoreHealth -Source "E:\sources\SxS" -LimitAccess

Microsoft’s reference notes that ScanHealth and RestoreHealth each take several minutes, and that CheckHealth, ScanHealth, RestoreHealth, Source and LimitAccess work on images running Windows 8 or later.

How long does DISM /RestoreHealth take?

Microsoft describes ScanHealth and RestoreHealth as taking several minutes; CheckHealth only reads a flag and finishes quickly. The real time depends on disk speed, how much is damaged and how fast Windows Update delivers replacement files, so a hard drive or a large repair can run far longer than an SSD with a healthy store.

• Leave the window open and the PC plugged in until DISM prints its final line.
• Do not start a second DISM or SFC run at the same time.
• Pause large downloads so Windows Update can deliver repair files faster.

How to fix DISM /Online /Cleanup-Image /RestoreHealth stuck?

The progress bar often pauses at the same points, commonly around 20% and 62.3%, while DISM works through the store or waits on Windows Update. A long pause there is normal and is not proof that DISM has frozen.

1. Wait. Give it at least an hour, longer on a hard drive, before you treat it as stuck.
2. Open Task Manager and check whether DismHost.exe or TiWorker.exe is still using CPU or disk; activity means it is still working.
3. If nothing has moved for hours, press Ctrl + C to cancel and restart the PC.
4. Run DISM /Online /Cleanup-Image /StartComponentCleanup, then RestoreHealth again.
5. If it stalls while downloading, switch to a local source with /Source:Wim:E:\sources\install.wim:<index> /LimitAccess.
6. Read the last lines of %WINDIR%\Logs\DISM\dism.log to see where it stopped.

How to use an offline Windows image (ISO, WIM) as a DISM repair source

Use this when Windows Update cannot supply the files, or when RestoreHealth reports the source files could not be found. /LimitAccess stops DISM from falling back to Windows Update.

Microsoft recommends original release media patched to the latest cumulative update. A source older than the installed Windows may lack the files the PC needs.

1. Download the ISO for your Windows version from Microsoft's official Download Windows 11 page, or plug in existing Windows install media.
2. Mount the ISO from an elevated PowerShell window with Mount-DiskImage -ImagePath "C:\Users\<you>\Downloads\Win11.iso", using your file's real path.
3. Note the drive letter the mounted ISO received in File Explorer, for example E:.
4. List the editions inside the image with DISM /Get-ImageInfo /ImageFile:E:\sources\install.wim.
5. Note the Index number whose Name matches the edition installed on the PC, such as Windows 11 Pro.
6. Run DISM /Online /Cleanup-Image /RestoreHealth /Source:Wim:E:\sources\install.wim:6 /LimitAccess, replacing E and 6 with your drive letter and index.
7. Wait for The restore operation completed successfully before closing the window.

The Wim: prefix and the :index suffix are required when the source is a .wim file. You can also point /Source at a mounted image's Windows folder, a \sources\SxS folder, or a shared \\<servername>\c$\windows folder on a PC running the same Windows version.

If you list several /Source locations, DISM copies from the first one that has the file and ignores the rest. Microsoft documents the Wim: source syntax for .wim files; if the sources folder holds no install.wim, use Windows Update or another PC as the source instead.

Checking and repairing the Windows component store

RestoreHealth is one of several /Cleanup-Image operations. These are the ones worth knowing on a home or office PC; run each one from an elevated window.

Command	What it does	Use it when
DISM /Get-WimInfo /WimFile:E:\sources\install.wim	Lists the images and editions inside a .wim file. /Get-ImageInfo /ImageFile: is the current name for the same job.	You need the index number for a /Source path.
DISM /Online /Cleanup-Image /AnalyzeComponentStore	Reports the real size of the component store and whether cleanup is recommended.	WinSxS looks large and you want facts before cleaning.
DISM /Online /Cleanup-Image /StartComponentCleanup	Removes superseded component versions at once, with no 30-day grace period and no 1-hour timeout.	You want to reclaim disk space after updates.
DISM /Online /Cleanup-Image /StartComponentCleanup /ResetBase	Removes every superseded component version. Installed updates can no longer be uninstalled.	Only when you are sure you will not need to roll back an installed update.
DISM /Image:D:\ /Cleanup-Image /RestoreHealth /Source:...	Repairs an offline Windows installation whose root folder is D:\.	Windows will not start and you are working from recovery tools.
DISM /Cleanup-Mountpoints	Deletes resources left by a corrupted mounted image.	A DISM mount operation was interrupted.

To free more space after a repair, Disk Cleanup works alongside these commands, as our steps for cleaning up system files show. Never delete the WinSxS folder by hand. Microsoft warns that doing so can leave the PC unable to boot or update.

How to check if DISM repair worked

1. Confirm RestoreHealth ended with The restore operation completed successfully.
2. Run DISM /Online /Cleanup-Image /CheckHealth and confirm it no longer reports a repairable or non-repairable image.
3. Run sfc /scannow and confirm it finds no violations, or repairs everything it finds.
4. Open Settings > Windows Update and select Check for updates if a failed update started the problem.
5. Confirm the update that failed before now installs.

What do the DISM /RestoreHealth results mean?

DISM writes two logs. %WINDIR%\Logs\DISM\dism.log records the DISM run itself, and %WINDIR%\Logs\CBS\CBS.log records what the servicing stack found and fixed.

Open either log in Notepad and scroll to the entries matching the time you ran the command. In CBS.log, look for the Summary block.

What you see	What it means	What to do next
The restore operation completed successfully	The component store is repaired or was already healthy.	Run sfc /scannow.
CheckHealth: image is repairable	Corruption was flagged and can be fixed.	Run RestoreHealth.
CheckHealth: image is non-repairable	The store is beyond DISM repair.	Reinstall Windows, keeping your files.
Error 0x800f081f	CBS_E_SOURCE_MISSING: the repair source did not have the files.	Use a matching ISO with /Source and /LimitAccess.
Error 0x800f0906	CBS_E_DOWNLOAD_FAILURE: DISM could not download from Windows Update.	Fix the connection or use a local source.
CBS.log: Total Detected Corruption higher than Total Repaired Corruption	Some damage remains after the run.	Repeat with a source that matches the installed build.
CBS.log: CSI Payload Corrupt or CBS MUM Missing lines	A named file or package is damaged or absent.	The version number in the line shows which update the file came from.

What to do if DISM /RestoreHealth fails

Check the most common causes first: a Command Prompt window without administrator rights, no internet connection, or a repair source from a different Windows version.

"The source files could not be found" or error 0x800f081f

Windows Update or your /Source location did not contain the files DISM needed.

1. Get an ISO of the same Windows version as the PC, updated as recently as possible.
2. Find the right index with DISM /Get-ImageInfo /ImageFile:E:\sources\install.wim.
3. Run DISM /Online /Cleanup-Image /RestoreHealth /Source:Wim:E:\sources\install.wim:<index> /LimitAccess.
4. If it still fails, use another PC running the same version: /Source:\\<servername>\c$\windows /LimitAccess.

DISM cannot download files from Windows Update (0x800f0906)

Windows Update is broken, blocked or unreachable, so DISM has no repair source.

1. Confirm the PC is online and the date and time are correct.
2. Open Settings > System > Troubleshoot > Other troubleshooters.
3. Find Windows Update and select Run, then follow the prompts.
4. Restart, then run RestoreHealth again.
5. If downloads still fail, switch to the ISO source with /LimitAccess.

Work or school PC ignores Windows Update as a source

Group Policy sets a different repair source or blocks Windows Update for repairs.

1. Open Edit Group Policy, then go to Computer Configuration > Administrative Templates > System.
2. Open Specify settings for optional component installation and component repair to see the configured source.
3. On a managed PC, ask IT for the approved repair source instead of changing the policy.

How to use DISM offline to repair a Windows image

/Online only services a running Windows installation.

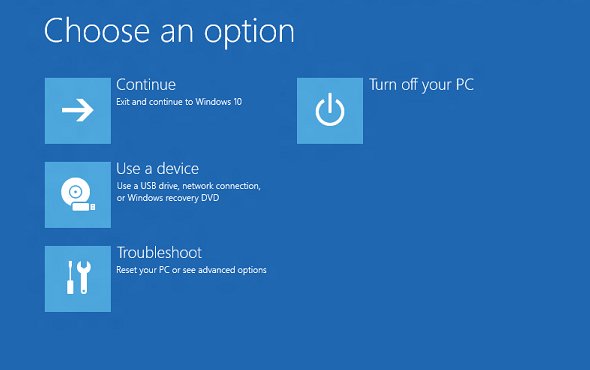

1. Open Advanced startup: hold Shift while selecting Restart on the sign-in screen, or enable the F8 boot menu beforehand.
2. Open the Command Prompt window from the recovery tools. Enter the BitLocker recovery key if asked.
3. Type dir D:\ (then C:\, E:\) to find the drive that contains the Windows folder.
4. Run DISM /Image:D:\ /Cleanup-Image /RestoreHealth /Source:Wim:E:\sources\install.wim:<index>, using your Windows drive and media drive letters.
5. Restart and let Windows boot normally.

Repair keeps failing or the image is non-repairable

The component store is damaged beyond what DISM can fix.

1. Back up your files.
2. On Windows 11, version 22H2 or later, use the Reinstall Windows option in Microsoft's recovery options. It keeps files, apps and settings.
3. If that is not available, use Reset this PC and choose to keep your personal files.

DISM vs SFC: which one should you run first?

SFC checks and replaces the protected system files Windows is using; DISM repairs the component store those replacements come from. Microsoft’s procedure runs DISM first and SFC second. Neither tool fixes a failing disk, so if errors keep coming back, scan the drive with chkdsk as well.

DISM fixes the store; SFC then fixes the protected files in use. Run SFC in the same elevated window right after DISM succeeds.

sfc /scannow

Scans every protected system file and replaces damaged ones with the copy from the component store that DISM just repaired.

You should see: Windows Resource Protection did not find any integrity violations, or found corrupt files and successfully repaired them.

Every SFC result message, safe-mode runs and the SFC log are explained in our sfc /scannow guide.

DISM RestoreHealth FAQ

How do I repair a DISM image?

Open Command Prompt as administrator and run DISM /Online /Cleanup-Image /RestoreHealth. If it reports missing source files, repeat it with /Source:Wim:E:\sources\install.wim:<index> /LimitAccess pointing at a mounted Windows ISO of the same version. Finish with sfc /scannow.

How long should DISM /Online /Cleanup-Image /RestoreHealth take?

Microsoft describes RestoreHealth as taking several minutes. ScanHealth takes a similar time, while CheckHealth only reads an existing flag and finishes quickly. Leave the elevated window open until DISM prints its final result line, and do not close it mid-run.

Do I need an internet connection to run DISM RestoreHealth?

Only for the default source. DISM downloads good files from Windows Update. Without internet, add /Source pointing at a mounted ISO's install.wim, a mounted image or a shared Windows folder, and add /LimitAccess so DISM does not try Windows Update.

Should I run SFC or DISM first?

Run DISM first. Microsoft's own procedure puts DISM.exe /Online /Cleanup-Image /RestoreHealth before sfc /scannow, because SFC replaces damaged system files with copies from the component store. If the store is damaged, SFC has nothing good to copy.

What does "The restore operation completed successfully" mean?

It means DISM finished and the component store is healthy, either repaired or clean from the start. It does not mean every system file in use is fixed. Run sfc /scannow next to repair those files from the restored store.

What should I do if DISM fails with source files could not be found?

Give DISM a local source. Mount a Windows ISO of the same version, find the edition index with DISM /Get-ImageInfo, then run RestoreHealth with /Source:Wim:<drive>:\sources\install.wim:<index> /LimitAccess. A source older than the installed updates can still fail.

Can DISM repair an offline Windows image?

Yes. Replace /Online with /Image: followed by the root folder of the offline Windows installation, for example DISM /Image:D:\ /Cleanup-Image /RestoreHealth /Source:Wim:E:\sources\install.wim:1. This works from recovery tools when Windows will not start.

Is DISM RestoreHealth stuck at 62.3% normal?

A long pause around 20% or 62.3% is common and usually means DISM is still working. Check Task Manager for DismHost.exe or TiWorker.exe activity and wait at least an hour before cancelling.

Does the DISM image repair command work in PowerShell?

Yes. DISM /Online /Cleanup-Image /RestoreHealth runs the same way in Command Prompt, PowerShell and Windows Terminal, and Repair-WindowsImage -Online -RestoreHealth is the PowerShell cmdlet for the same repair. Open the window with Run as administrator first, because DISM servicing commands need an elevated session.

Best practices for DISM, SFC, and system recovery

Run DISM /Online /Cleanup-Image /RestoreHealth first, then sfc /scannow, and switch to an ISO source with /LimitAccess only when Windows Update cannot supply the files. SFC can only repair from a healthy component store, and a repair source that matches the installed Windows version is what decides whether DISM succeeds.
